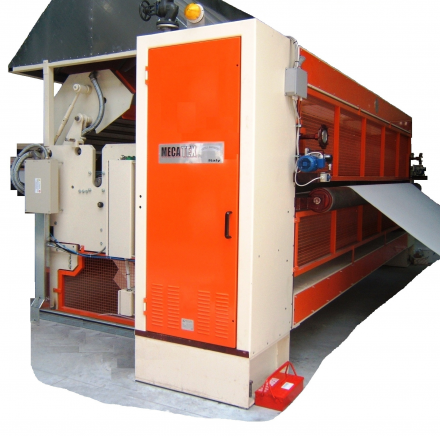

Heatbonding machine mod.TF200
Technical features:
Working width: up to 7000 mm
Max. temperature: 700°C
Description:
Machine suitable for the heat-bonding of needled non woven materials.
The machine mainly consists of 2 transporting cylinders ø 800 mm having a special no-shrinkage clothing and a calendering group with 2 cylinders ø 600 mm, provided with a diathermic oil thermo adjustment system with internal spiral (or equivalent systems).
Infrared rays heating panels, placed over the cylinders, treat both sides of the material with an adjustable intensity according to its characteristics.
The calendering cylinders may be crossed (cross-axing) to compensate eventual bending, and are provided with a limit beat, thus allowing calender works on thickness gauge.
In case of power supply interruption or emergency, heating panels automatically open and lower calender cylinder lift down, in order to avoid material burning.
Machine supplied with 3 (or more) door-control board complete with separate driving console, pneumatic station.
