Thermobonding oven mod.FN200
Technical features:
Working Width: Up to 4000mm
Roll face width: Working width + 200 mm
Material fibres: Nonwoven web of polyester or different fibres mixed with 10-25% polyester bi-component binder fibres or different binder fibres
Speed: 1 - 20 mt/min. (other upon request)
Distance between belts: 5÷195mm
Heating media: Electrical/gas/gas oilHeating capacity installed:300.000 Kcal/h (two sections in working width 2500 mm)
Circulating air volume: 2 x max. 35.000m³/h, adjustable by frequency converter (for working width 2500mm)
Maximum air temperature: 20÷230 °C
Compressed air requirements: 7 bar
Installed power: Approx. 60 kw (for two sections)
Approx. Weight: According to the working width of the machine
Description:

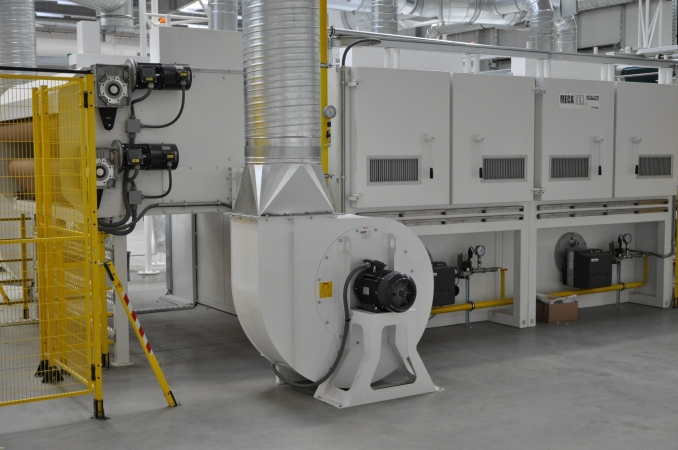

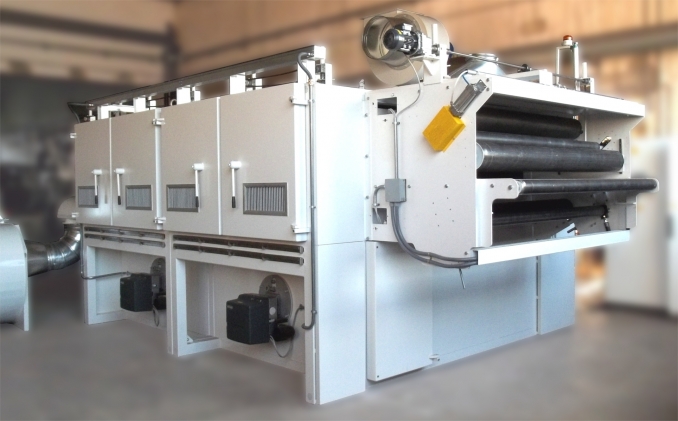

The Thermo-Bonding Oven is a stable, welded construction, made out of sectional steel. It is realized by modular sections of 2 metres each one.
The walls have a thickness of 100 mm and are insulated with special material (rock wool).
Thanks to the modular design of the system, additional heating or cooling sections can be added later for increasing the capacity.
Each heating section is equipped with its own ventilation , temperature control and air filtering system.
The material to be processed is contained between two belts especially designed with open mesh for high air permeability. The distance of the belt and blowing nozzles can be individually adjusted in each section of the Oven.
By a particular nozzles disposition, an high and uniform hot air flow is obtained between the two sides of the material. This effect can be noticed in a short heating up period and in a high bulk of the product.
At the exit point of the Oven, a cooling zone is mounted. The air is sucked through the material when said material is still contained between the two transport belts.
The speed of the corresponding fan is adjusted by Inverter.
