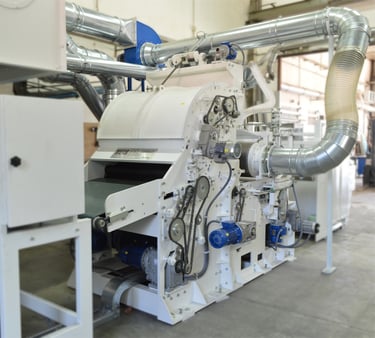

AIRLAY CARD MOD.CA300

Machine particularly suitable for producing items for mattresses, furniture, cars, padding, footwear and filters.

Working height: from 1000 to 4000 mm

Side distance Working height: +100mm

Processable fibres: All new and regenerated fibres, including those mixed with natural and vegetable fibres. The denier of the fibres ranges from /= 30 dtex, and the length of the fibres ranges from 0.8/10 mm to a maximum of 90 mm. The capacity of the machine for a given fibre fineness depends on the length of the fibre itself.

Grammage: 150 – 3000 (g/m2)

New fibre production: height: 1000 mm : 250 kg/h

Working height: 2500 mm : 600 kg/h

Regenerated Fibres: working height: 1000 mm: 500 kg/h

Working height: 2500 mm: 1200 kg/h

Output speed: 1 – 20 mt/min. (more on request).

Volume of circulating air: ~ 2 x max. 18.000 m³/h, 2 x max. 15 kW adjustable via inverter.

Compressed air: 7 bar

Installed electrical capacity: ~ 60 kw ca. – depends on the working height.

Electrical connection: 3 x 380 V + N + E / 50 Hz.

Machine weight: It depends on the working width..

Machine dimensions: Length = 3000 mm. Width = Distance between sides + 1000 mm. Maximum height from the ground = 3000 mm.
