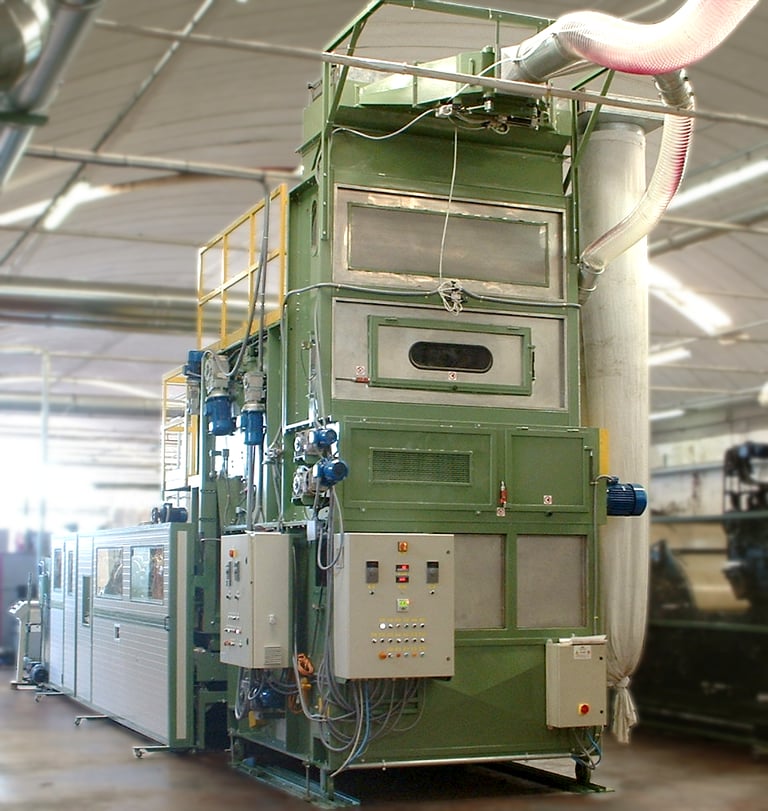

AUTOMATIC HOPPER FEEDER MOD. 1039

The Automatic Hopper Feeder mod.1039 can be used without restriction on any type of textile machine that requires fibre feeding, such as: Garnett, Carding Machines and Carding Assortments, etc.

The fibre is unloaded and fed into the next machine by means of a compactor (volumetric) unit located at the loader outlet. It can be equipped with a scale (model 1039-B) or a weighing belt (model 1039-VN), both electronically controlled by a PLC.

These two systems ensure constant and uniform feeding of the machine to be fed.

Model 1039-ST consists of a loader specially designed for feeding shredding lines.

Working height: From 1000 to 4000 mm

Production: From 300 to 1500 kg/h

Installed power: From 5 to 10 kW

Approximate weight: From 2000 to 3000 kg

Noise: 75 dBA
