VERTICAL LAPPER MOD.FV200

The vertical folder is a simple and functional device for the production of bulky non-woven fabric. It is an extremely versatile and compact machine that works in tandem with a hot air heat bonding oven with two belts.

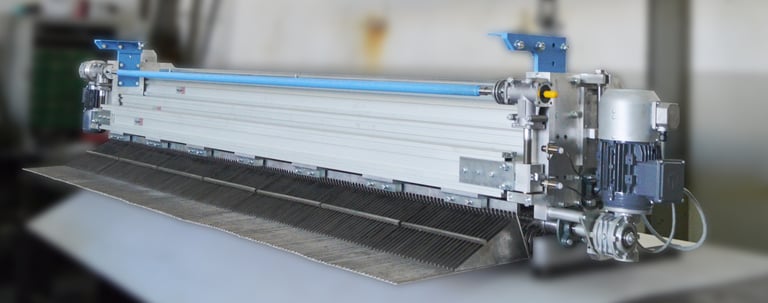

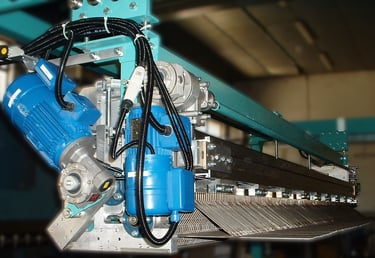

The vertical folding machine consists mainly of two disc shafts, individually controlled by gear motors which are in turn controlled by inverters.

By modifying the speed ratio of the disc shafts, the thickness of the folded product can be varied, while by varying the speed of the oven belts, its density and/or weight can be adjusted. By varying the speed of the upper belt of the heat-bonding oven, the inclination of the folds can be varied and, therefore, the characteristics of the finished product.

Working height: Up to 4000 mm

Speed: 70 to 150 metres per minute

Finished product thickness: 5 to 70 mm (if non-shrinkable elastic fibres are not used) with 2 different forming disc shafts

Weight of carded fleece: 7 ÷ 150 g/m2

Finished product density: 8 ÷ 120 kg/m3

Weight of the finished product: 80 ÷ 3000 g/m2

Installed power: 2 kW
