90° WEB TURNER

To make the best use of our STRATO (Vertical Lapper) technology line and to produce classic folded products with the same line, this special device is required. It is capable of "turning" the web coming from the carding machine by 90°, so that it can then be fed at high speed directly into the STRATO (Vertical Lapper) head.

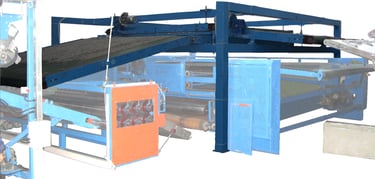

This device has a self-supporting structure, on which three crossed belts are mounted with a polished stainless steel crossbar positioned at 45°.

The belts are driven by independent motors to adjust the stretching of the web. The web coming from the carding machine is pulled between a belt and the plane preceding the polished crossbar.

From this crossbar, the web falls onto a lower belt positioned at 90° to the feed belt. This belt feeds the web into the STRATO (Vertical Lapper) head.

Working height: Up to 4000 mm

Speed: 90 m/min

Number of motors: 3

Installed power: 7 kW
